How Much Electricity Does an Air Compressor Really Use? (With Cost Formula)
This guide breaks down air compressor energy cost, electricity usage, hidden losses, and practical ways to reduce compressed air operating costs.
SELECTION AND EXPANSION OF AIR COMPRESSORS
sofiya
12/25/20253 min read
Many factory owners feel their air compressor electricity bill is “unreasonably high”, but few can clearly explain where the energy actually goes.
The truth is: most air compressor energy cost is wasted before compressed air is even used.
This guide explains:
How much electricity an air compressor really uses ?
The exact formula to calculate energy cost .
Where 20–40% of energy is commonly wasted.
Practical ways to reduce compressed air electricity cost.

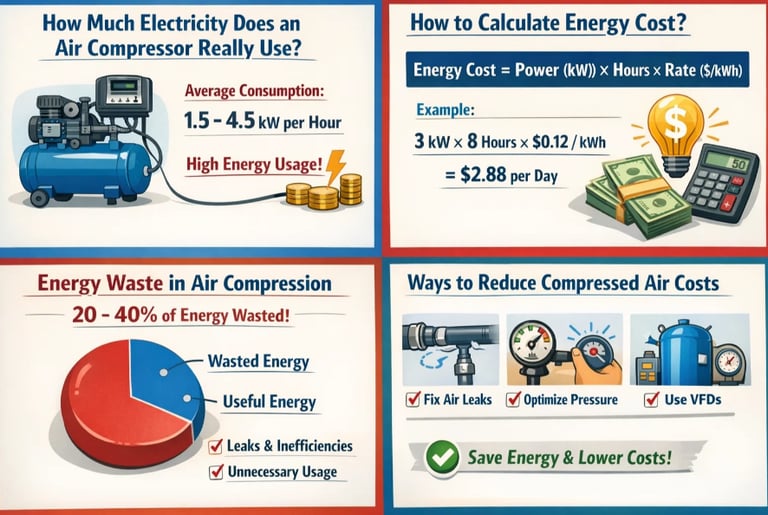

1.How Much Electricity Does an Air Compressor Use?
Air compressor electricity consumption depends on power, load rate, and operating hours — not just the nameplate kW.
Basic Formula:
Electricity Cost = Power (kW) × Operating Hours × Electricity Rate.
Example:
Compressor power: 75 kW
Operating time: 20 hours/day
Electricity rate: $0.12/kWh
75 × 20 × 0.12 = $180 per day≈ $5,400 per month
But this is only a "theoretical value," and the reality is often worse.

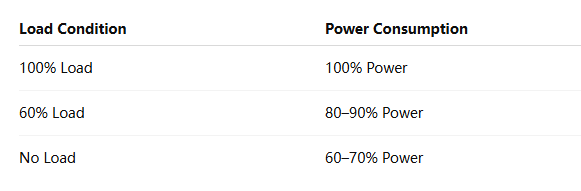

2.Why Nameplate Power Is Misleading?
Most compressors rarely run at full load, yet still consume 60–80% of rated power when unloaded.
3.The Real Formula Engineers Use (Not Sales Math):
To calculate real energy cost, engineers use:
Actual Energy Cost =Rated Power × Load Factor × Runtime × Electricity Rate
Load Factor Reference
Fixed speed compressor: 0.75–0.9.
Variable speed compressor: 0.45–0.65.
This is why VSD Air Compressor can save significant amounts of electricity.

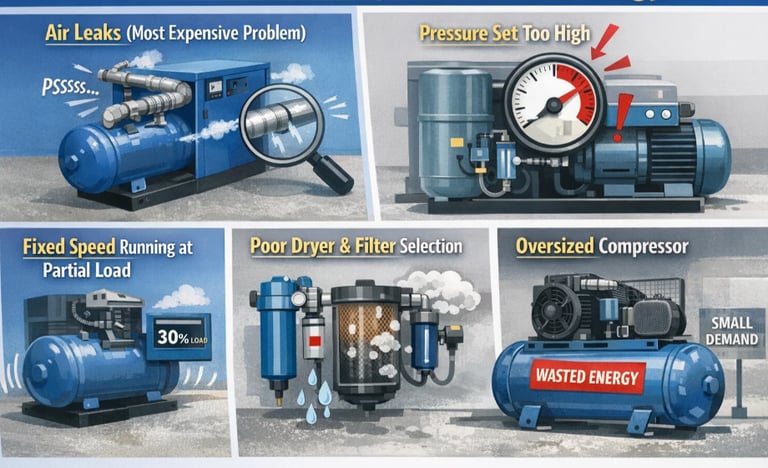

4.Five key areas where air compressors waste energy:
Air Leaks (Most Expensive Problem):
A 3mm air leak can waste over $2,000/year in electricity.
Air Compressor Air Leak Detection Guide.
Pressure Set Too High:
Every 1 bar increase raises energy use by 7–10%.
Fixed Speed Running at Partial Load:
Fixed speed compressors waste power during unloading cycles.
Fixed Speed vs Variable Speed Air Compressor.
Poor Dryer & Filter Selection:
Dryers and filters increase pressure drop → higher energy cost.
Refrigerated vs Desiccant Air Dryer Guide.
Oversized Compressor:
Oversizing is one of the most common and expensive mistakes.
5.How to Reduce Air Compressor Electricity Cost (20–40%)?
Step 1 — Fix Air Leaks First (Fastest Payback）
In most factories, 15–30% of compressed air is lost to leaks. In other words: The air you paid to compress was never actually used.
What to do:
(1)Run compressor at night (no production).
(2)Measure pressure decay.
(3)Use ultrasonic leak detector or soap test.
(4)Fix leaks before touching anything else.
Step 2 — Lower System Pressure (Every 1 Bar = 7–10% Energy)
What to do:
(1)Measure end-point pressure (not compressor outlet).
(2)Clean / upgrade filters and dryers.
(3)Reduce pressure step by step (0.2 bar each time).
6.FAQ:
Q1: How much electricity does a 100 HP air compressor use per hour?
≈ 75 kWh at full load.
Q2: Why is my air compressor electricity bill so high?
Leaks, high pressure, low load efficiency.
Q3: Is variable speed always more energy efficient?
Yes, especially for fluctuating air demand.
Final Conclusion:
Air compressor energy cost is not a mystery.
Once you measure load, leaks, and pressure, savings become obvious.
The most effective cost reductions don’t come from short-term fixes, but from system-level optimization. Start with energy analysis, and long-term savings will follow.
